Description

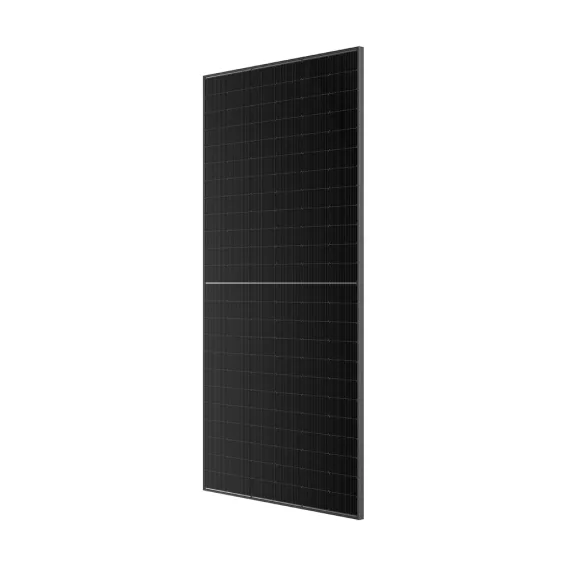

The LONGi Hi-MO X10 Guardian Anti-Dust LR7-72HVHF is a high-performance solar module designed for reliable energy generation in demanding installation environments. It is available from 640W to 670W and uses LONGi’s HPBC 2.0 cell technology to deliver high efficiency and stable performance.
Its Guardian Anti-Dust frame design is engineered to reduce the impact of dust accumulation on the module, helping maintain power generation throughout the panel’s operating lifecycle. The datasheet also highlights its suitability for industrial and commercial colour steel tile roofs and small-angle installation scenarios.
Key Features
- 640W–670W power range
- Up to 24.8% module efficiency
- HPBC 2.0 cell technology
- Guardian Anti-Dust frame design
- BC-cell technology with lower operating temperature
- 0–3% power tolerance
- Less than 1% first-year power degradation
- 0.35% annual degradation from years 2–30
- 1500V DC maximum system voltage
- 25A maximum series fuse rating
- IP68-rated junction box
- -40°C to +85°C operating temperature
- 5400 Pa front-side maximum static loading
- 2400 Pa rear-side maximum static loading
- 15-year materials and processing warranty
- 30-year linear power output warranty
Anti-Dust Design
One of the key features of this panel is its Guardian Anti-Dust design. According to the supplied datasheet, the unique frame design is intended to reduce the effect of dust accumulation and improve power-generation gain throughout the module’s lifecycle.
This makes the panel particularly suited to applications where dust accumulation and lower-angle mounting conditions need to be considered, including the industrial and commercial roof applications identified by LONGi.
Technical Specifications – 670W Variant
| Specification | 670W |
|---|---|
| Maximum Power | 670Wp |
| Module Efficiency | 24.8% |
| Vmp | 44.96V |
| Imp | 14.91A |
| Voc | 54.30V |
| Isc | 15.60A |
| Cell Orientation | 144 (6 × 24) |
| Dimensions | 2382 × 1134 × 30mm |
| Weight | 28.5kg |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 25A |
| Junction Box | IP68 |
| Operating Temperature | -40°C to +85°C |
| Power Tolerance | 0–3% |
The datasheet provides individual specifications for the 640W, 645W, 650W, 655W, 660W, 665W and 670W variants.
Physical Construction
The module uses 3.2mm coated tempered glass, an anodised aluminium alloy frame and an IP68-rated junction box. It measures 2382 × 1134 × 30mm and weighs approximately 28.5kg.
Recommended WooCommerce Setup
Product Name:
LONGi Hi-MO X10 Guardian Anti-Dust 640–670W Solar Panel
Category:
Solar Panels
Product Type:
Variable Product
Variations:
- 640W
- 645W
- 650W
- 655W
- 660W
- 665W
- 670W
Brand: LONGi
Series: Hi-MO X10 Guardian Anti-Dust
Model: LR7-72HVHF
One important point: this particular datasheet is for the Anti-Dust version and is not the same model as the LONGi Hi-MO X10 Guardian Anti-Glare panel. LONGi’s current product information distinguishes the different X10 variants, so I would keep “Guardian Anti-Dust” in the product title to avoid confusion.
Specifications are based on the supplied LONGi datasheet and may be subject to change by the manufacturer.
