Description

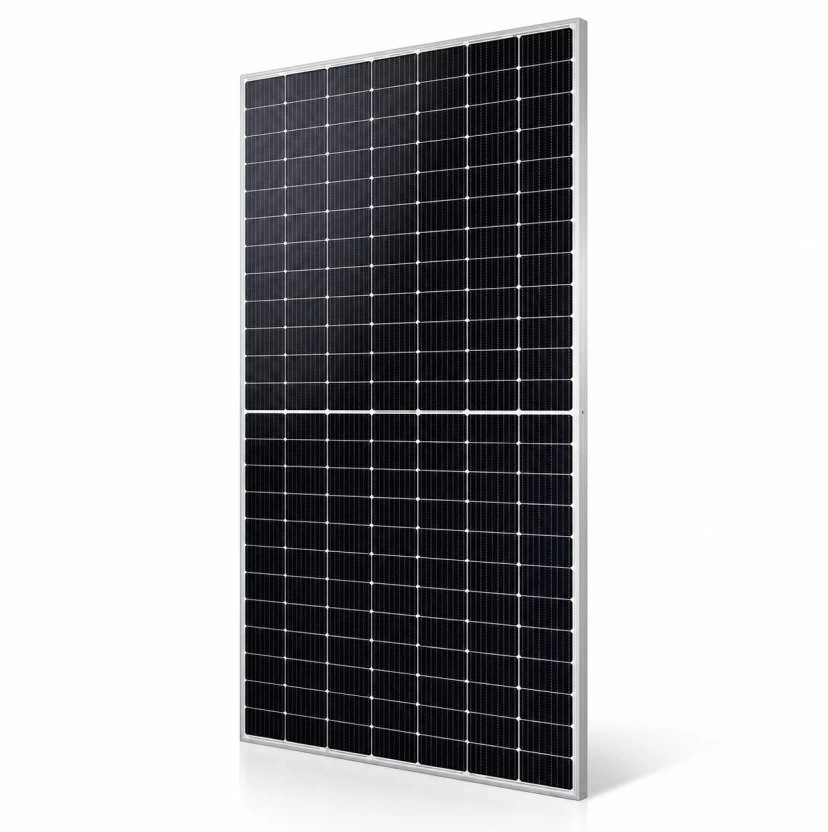

Jinko Tiger Neo 3.0 N-Type 650–670W Bifacial Solar Panel
The Jinko Tiger Neo 3.0 66QL6-BDV is a high-performance N-type monocrystalline bifacial solar panel designed to deliver high power output and efficient energy generation for modern solar installations.
Available in 650W, 655W, 660W, 665W and 670W variants, the module combines an advanced N-type TOPCon platform with a bifacial dual-glass construction. Its 85 ± 5% bifaciality allows the rear side of the module to contribute to energy generation when suitable reflected or rear-side light is available.
Key Features
- 650W–670W power range
- N-type monocrystalline technology
- Bifacial dual-glass module
- 85 ± 5% bifaciality
- Up to 24.80% module efficiency
- Advanced TOPCon technology
- Enhanced resistance to PID, LID and LeTID
- Optimised heat resistance
- Proven low-light performance
- 0–+3% power tolerance
- 1500V DC maximum system voltage
- 35A maximum series fuse rating
- IP68-rated junction box
- -40°C to +70°C operating temperature
- 12-year product warranty
- 30-year linear power warranty
- Approximately 0.35% annual degradation over 30 years according to the supplied datasheet.
High Power & Bifacial Performance
The Tiger Neo 3.0 is designed around an enhanced N-type TOPCon platform, with an optimised cell layout intended to capture more sunlight. The module’s bifacial construction allows the rear side to contribute to generation, with the datasheet specifying an 85 ± 5% bifacial factor.
The range reaches up to 24.80% efficiency on the 670W model, making it suitable for installations where high power output from available roof or mounting space is important.
Designed for Durability
The module uses 2.0mm anti-reflective front glass, 2.0mm heat-strengthened rear glass, an anodised aluminium alloy frame and an IP68-rated junction box. It is certified for a maximum static test load of 5400 Pa on the front side and 2400 Pa on the rear side.
Technical Specifications – 670W Variant
| Specification | 670W |
|---|---|
| Maximum Power | 670Wp |
| Module Efficiency | 24.80% |
| Vmp | 43.09V |
| Imp | 15.55A |
| Voc | 50.98V |
| Isc | 16.22A |
| Cell Type | N-type Monocrystalline |
| Number of Cells | 264 (66 × 4) |
| Dimensions | 2382 × 1134 × 30mm |
| Weight | 32.5kg |
| Bifaciality | 85 ± 5% |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 35A |
| Junction Box | IP68 |
| Operating Temperature | -40°C to +70°C |
| Power Tolerance | 0 to +3% |
These specifications are taken from the supplied Jinko datasheet.
Available Variants
For WooCommerce, I recommend setting this up as one variable product:
- 650W
- 655W
- 660W
- 665W
- 670W
The datasheet provides separate electrical specifications for each of these variants.
Category: Solar Panels
Product Type: Variable Product
This is also a current Jinko Solar model family; Jinko’s current product information lists the 650–670W N-type 66 quarter-cell bifacial module within the Tiger Neo 3.0 range.
Specifications are based on the supplied datasheet and may be subject to manufacturer change.
Data Sheet
jkm650-670n-66ql6-bdv-d1-p8-cc-en
