Description

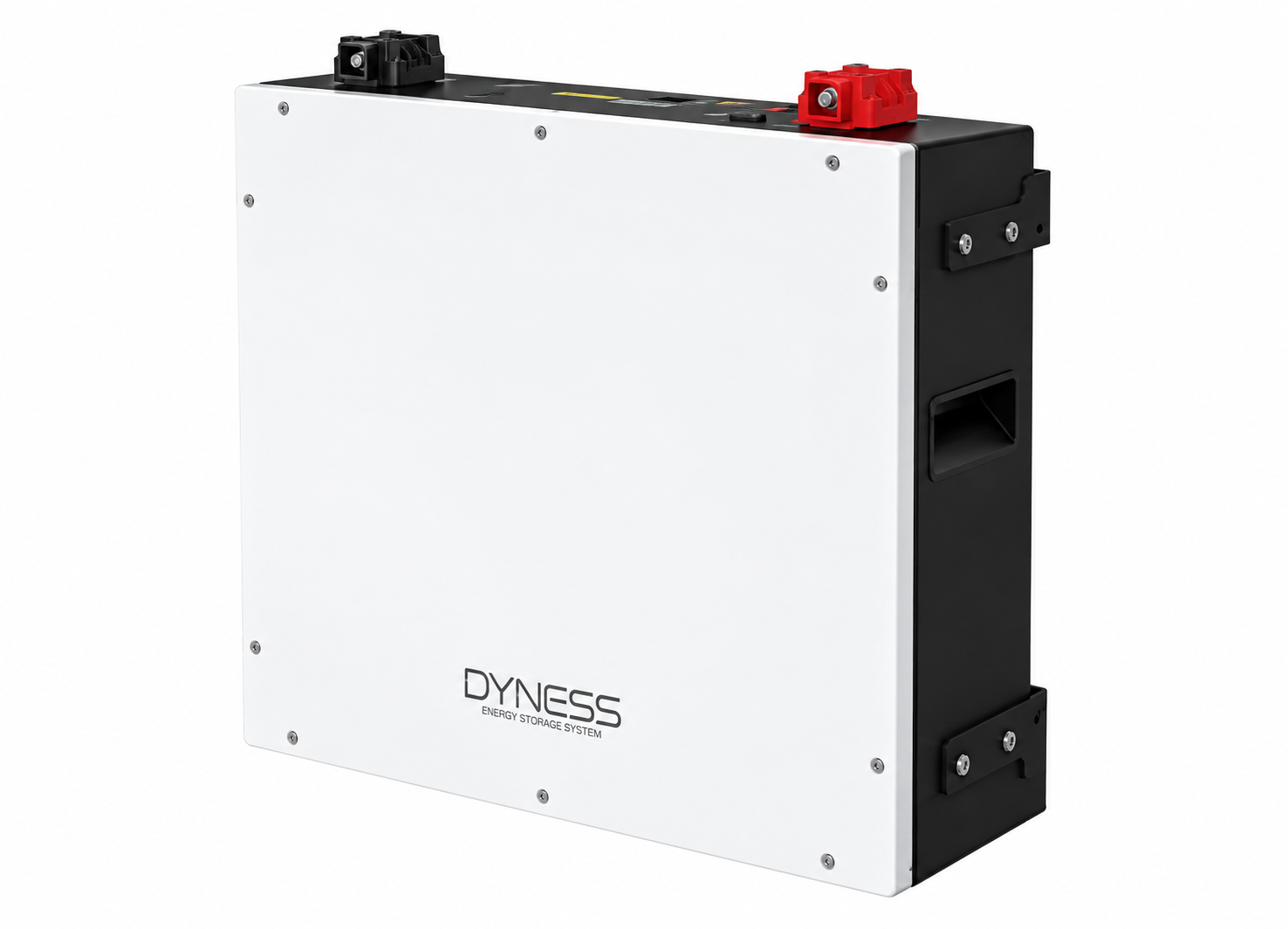

Dyness DL5.0C Pro 5.12 kWh Lithium Battery

The Dyness DL5.0C Pro is a high-performance low-voltage lithium battery designed for residential, small commercial and industrial energy-storage applications.

With a 5.12 kWh nominal battery capacity and 51.2 V nominal voltage, the DL5.0C Pro combines a compact design with high discharge capability and scalable battery expansion.

The battery supports 1C discharge, allowing it to supply power to multiple loads simultaneously and provide greater flexibility during periods of high energy demand. Up to 50 units can be connected in parallel, providing a scalable energy-storage range from approximately 5.12 kWh to 256 kWh.

---

Key Features

🔋 5.12 kWh Energy Capacity

The DL5.0C Pro provides:

5.12 kWh nominal battery energy

with a:

100 Ah nominal capacity

and:

51.2 V nominal voltage.

⚡ 1C High-Rate Discharge

The DL5.0C Pro supports a maximum 1C charge/discharge rate, with a recommended charge/discharge current of 50 A.

Maximum current is:

• 75 A charging
• 100 A discharging

This allows the battery to respond to higher power demands and supply multiple loads simultaneously.

📈 Flexible Expansion

Up to 50 DL5.0C Pro units can be connected in parallel, providing an energy-storage range of approximately:

5.12 kWh – 256 kWh

This makes the system suitable for applications where battery capacity needs to increase over time.

🔥 Intelligent Fire Protection

The battery features an optional aerosol fire-extinguishing system designed to detect and extinguish fires within approximately 5 seconds, according to the manufacturer’s product information.

🌡️ Automatic Self-Heating

An optional automatic self-heating function allows the battery to operate in lower temperatures, with the specified operating range extending from -20°C to 55°C when the heating function is available.

📱 Smart Battery Management

The DL5.0C Pro includes smart management capabilities with:

• Real-time system monitoring
• Remote control
• OTA updates
• CAN / RS485 communication
• Built-in Wi-Fi module

🏠 Flexible Installation

The battery supports:

• Wall-mounted installation
• Floor-mounted installation

Its compact design makes it suitable for a variety of energy-storage installation environments.

Data Sheet:

DL5.0C Pro Datasheet-EN-20250612 (1)
