Deye 12kW Single-Phase Hybrid Inverter – Powerful Solar & Battery Management

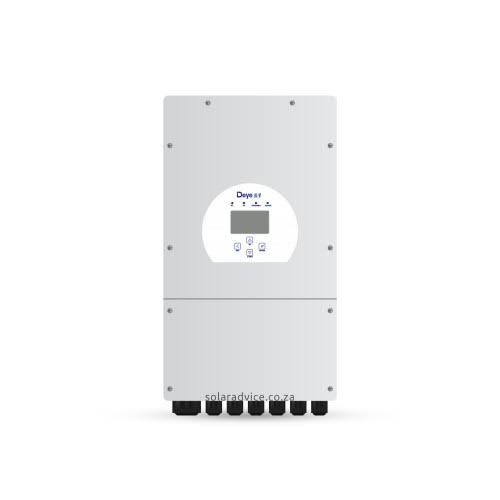

The Deye SUN-12K-SG02LP1-EU-AM3 is a high-capacity 12kW single-phase hybrid inverter designed for larger solar installations requiring substantial solar generation and battery-storage capability.
The inverter supports 40–60V low-voltage battery systems and is compatible with both lithium-ion and lead-acid batteries. The 12kW model provides up to 250A maximum charging and discharging current, with battery charging automatically adapting to the BMS for compatible lithium-ion systems.
High Solar PV Capacity
The Deye 12kW offers substantial PV input capability, supporting up to 24kW maximum PV access power and 19.2kW maximum PV input power.
It features three MPPT trackers, with a maximum PV input voltage of 500V and an MPPT voltage range of 150–425V, providing flexibility when designing the solar array.
Flexible Battery & System Configuration
The inverter supports multiple batteries in parallel and can be used in systems where additional inverter capacity is required. Up to 16 units can be connected in parallel for suitable on-grid and off-grid applications, subject to system design and installation requirements.
It also supports AC coupling, making it suitable for certain retrofit applications where an existing solar system needs to be expanded with additional energy-management or battery-storage functionality.
Advanced Energy Management
The Deye 12kW provides six programmable battery charging and discharging time periods, allowing the system to manage battery operation according to the installation’s energy requirements.
The inverter can also support storing energy from a diesel generator, providing additional flexibility for appropriately designed hybrid energy systems.
Key Features
- 12kW rated AC output
- Single-phase hybrid inverter
- Low-voltage 40–60V battery system
- Lithium-ion and lead-acid battery compatible
- 250A maximum charging current
- 250A maximum discharging current
- Up to 24kW PV access power
- Up to 19.2kW maximum PV input power
- 500V maximum PV input voltage
- 150–425V MPPT voltage range
- 3 MPPT trackers
- Multiple battery parallel support
- AC coupling capability
- Up to 16 inverters in parallel
- Six battery charging/discharging periods
- Diesel generator energy-storage support
- Colour touchscreen LCD
- IP65 protection
- Intelligent air cooling
- Maximum efficiency of 97.6%
- MPPT efficiency of >99%
- Type II AC and DC surge protection
Data Sheet:
